Indoor Gas Insulated Substation - Power Transmission
Al Ula - Madain Saleh - Western & Southern Region
September 2012
Saudi Electricity Company
380/132/33/13.8 kV
Voltage Level
502 MVA
Main Transformer
Indoor
GIS Type
IEC 61850
Standards
Project Overview
Project Information:
MADAIN 380/132/33/13.8KV BSP
Location:
Al Ula - Madain Saleh - Western & Southern Region
Client:
Saudi Electricity Company
Duration:
September 2012
Technical Specifications
Voltage Levels380/132/33/13.8 kV
Main Transformer502 MVA
Installation TypeIndoor
IEC 61850IEC 61850
Scope of Work

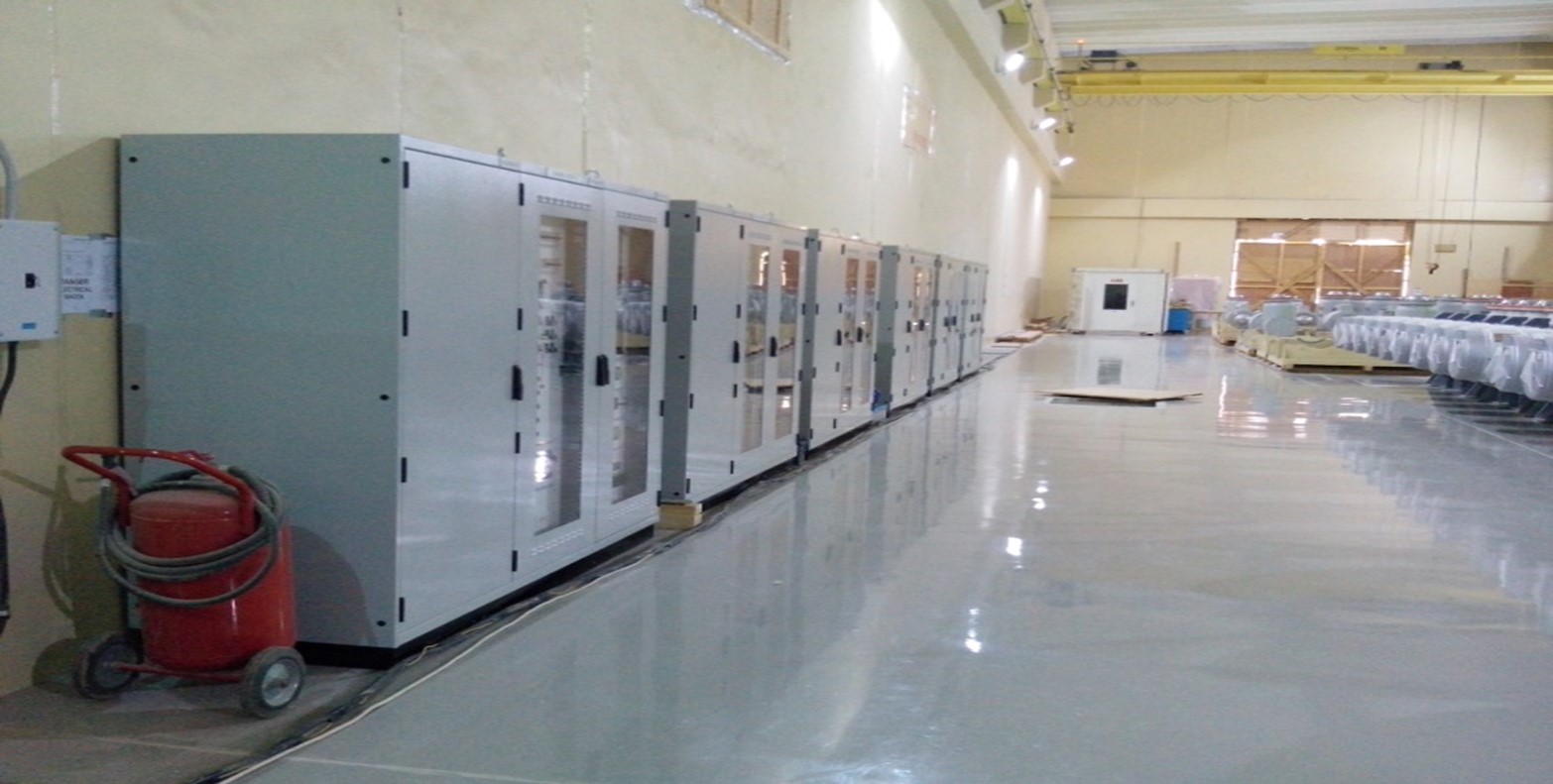

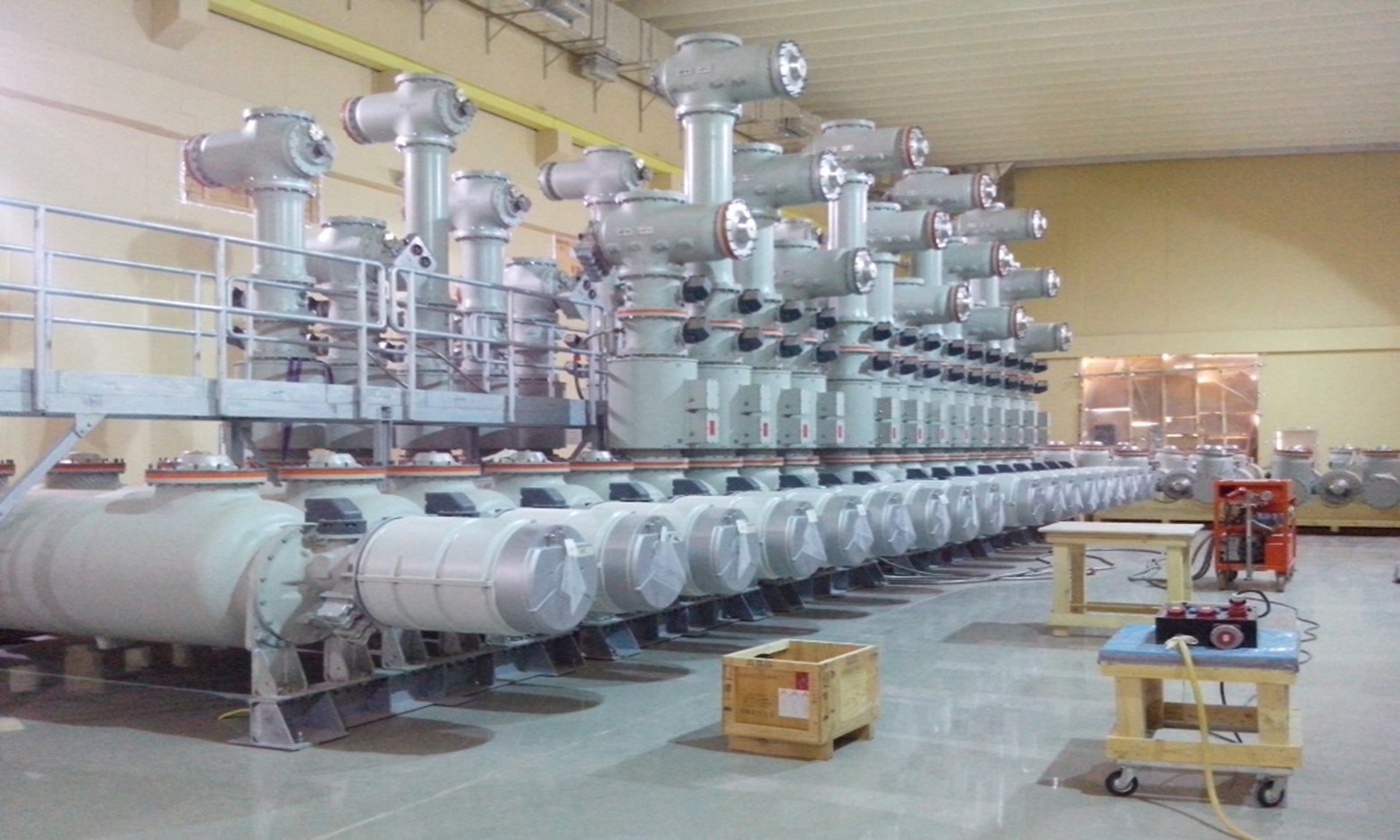

380kV GIS Building & LCCs

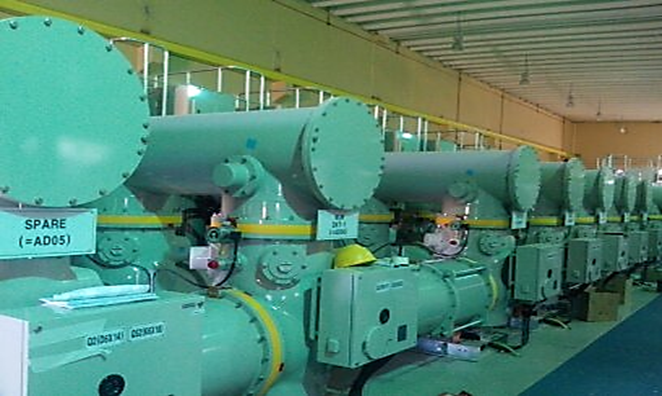

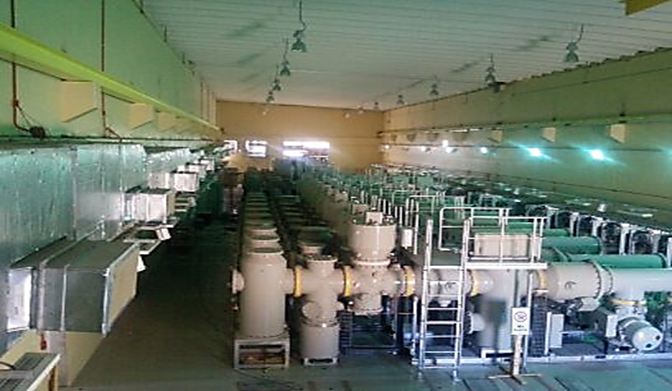

132kV GIS Systems

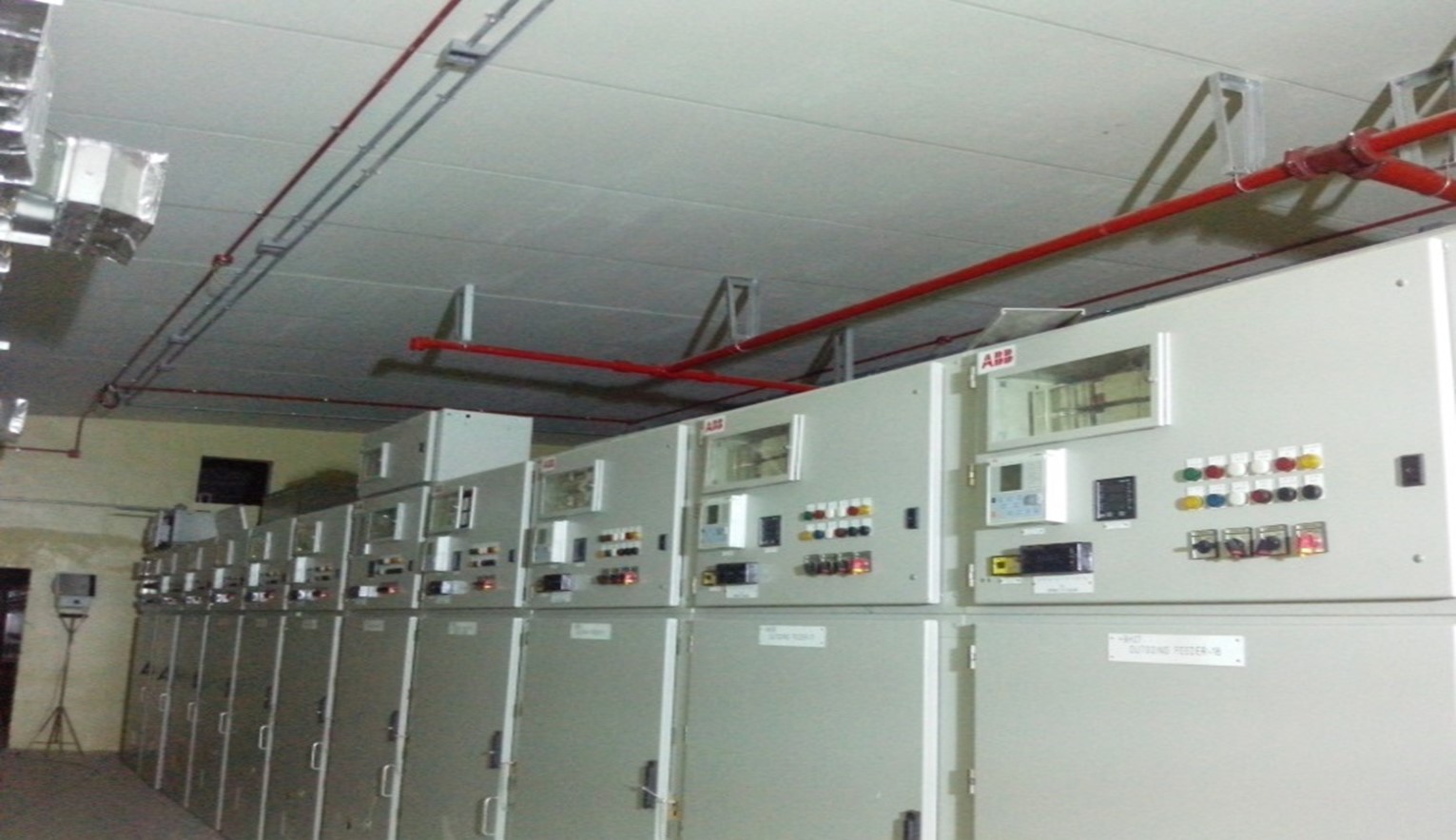

33kV Switchgear

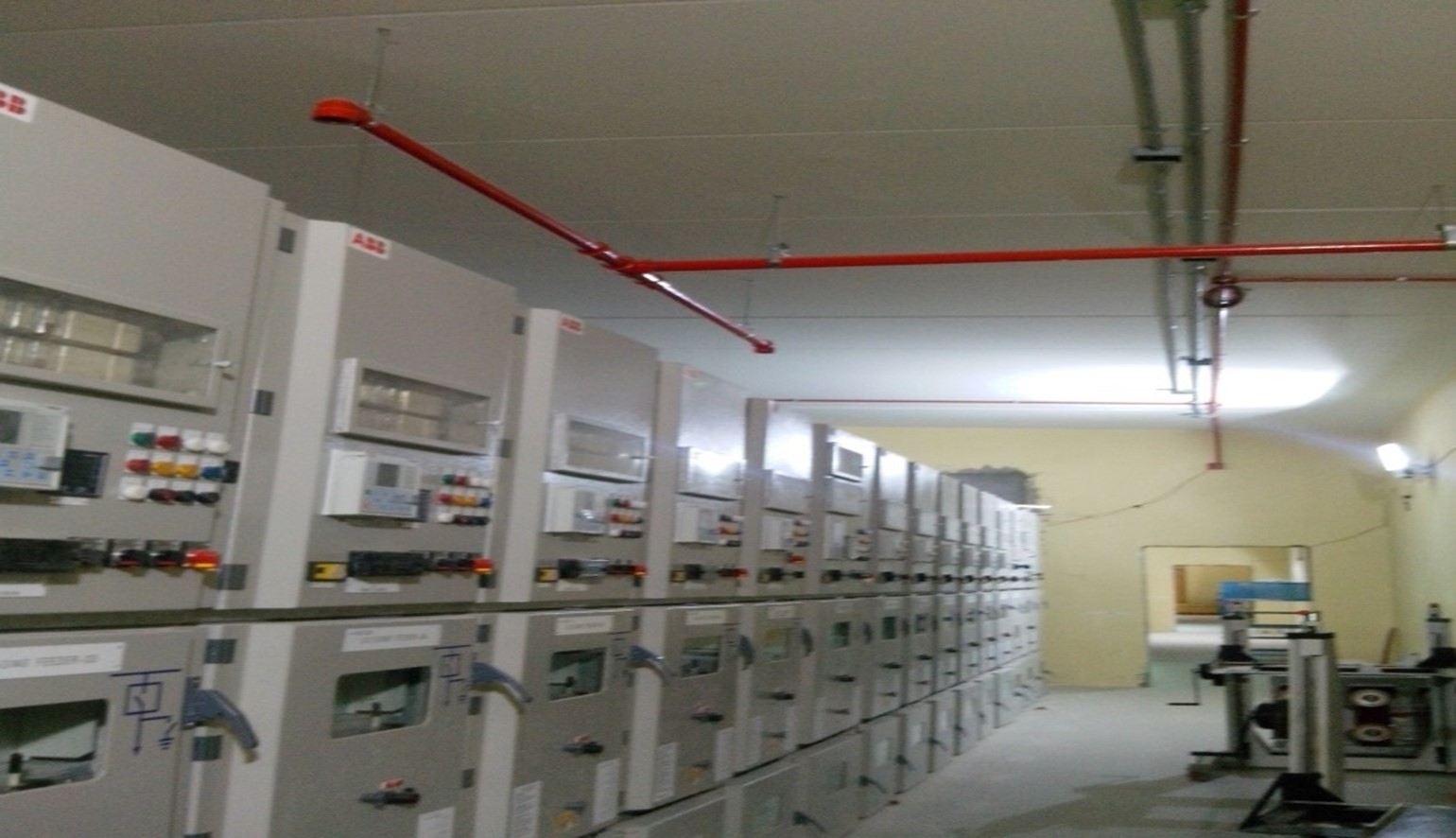

13.8kV Switchgear

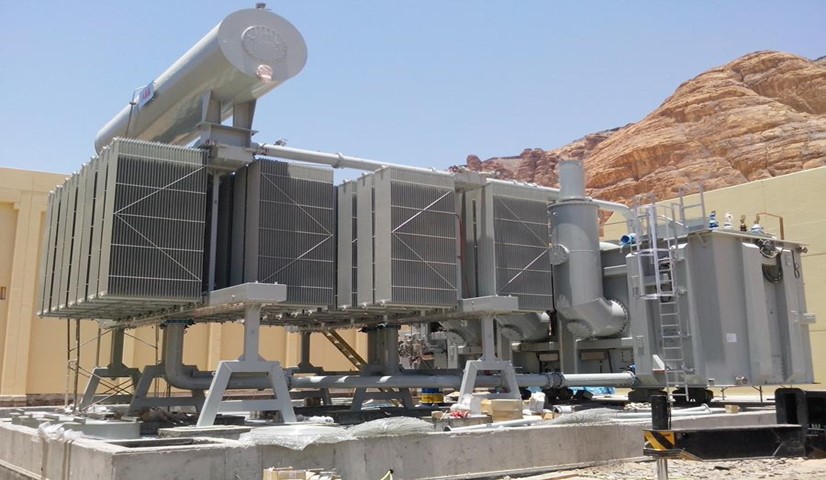

502MVA Main Transformer

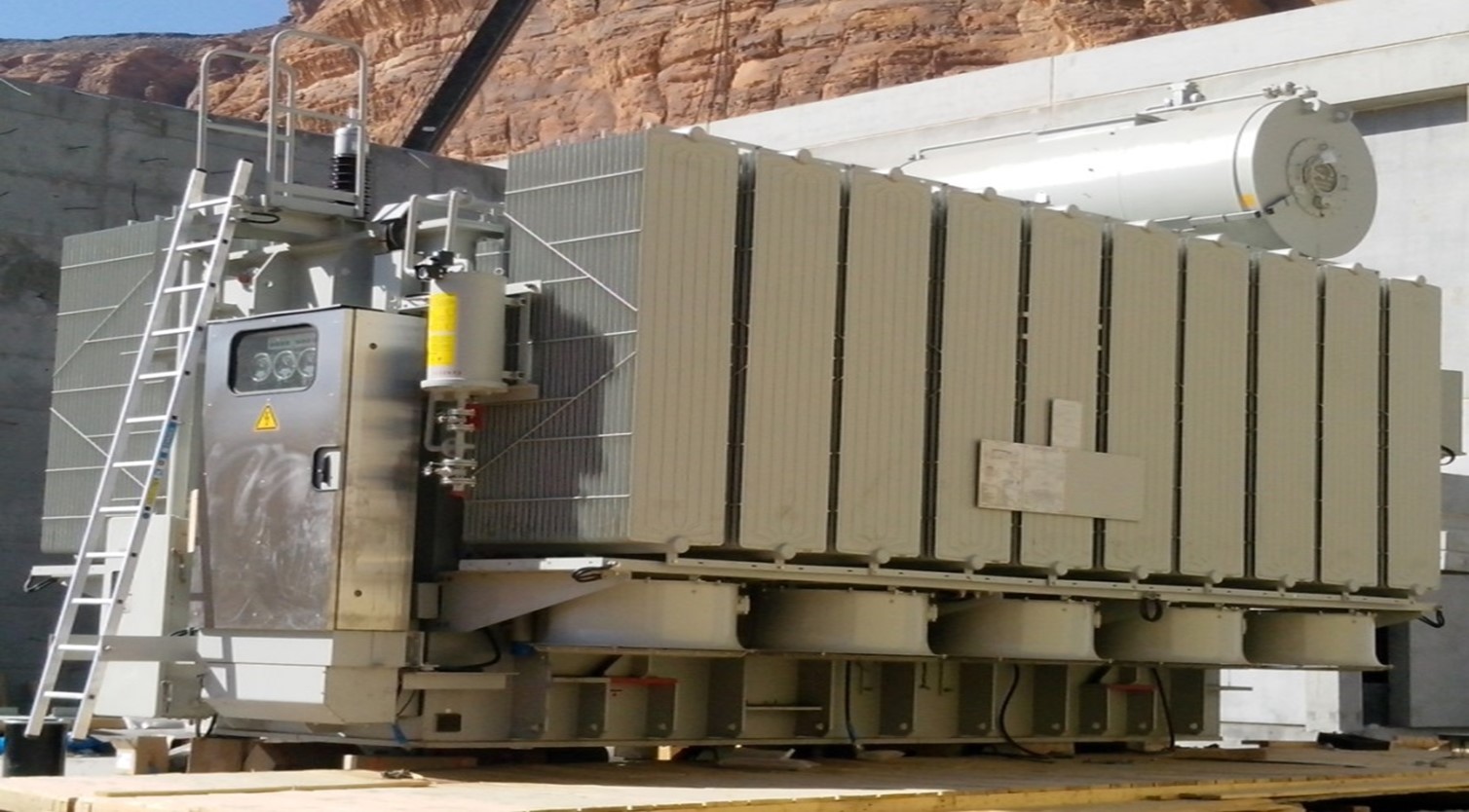

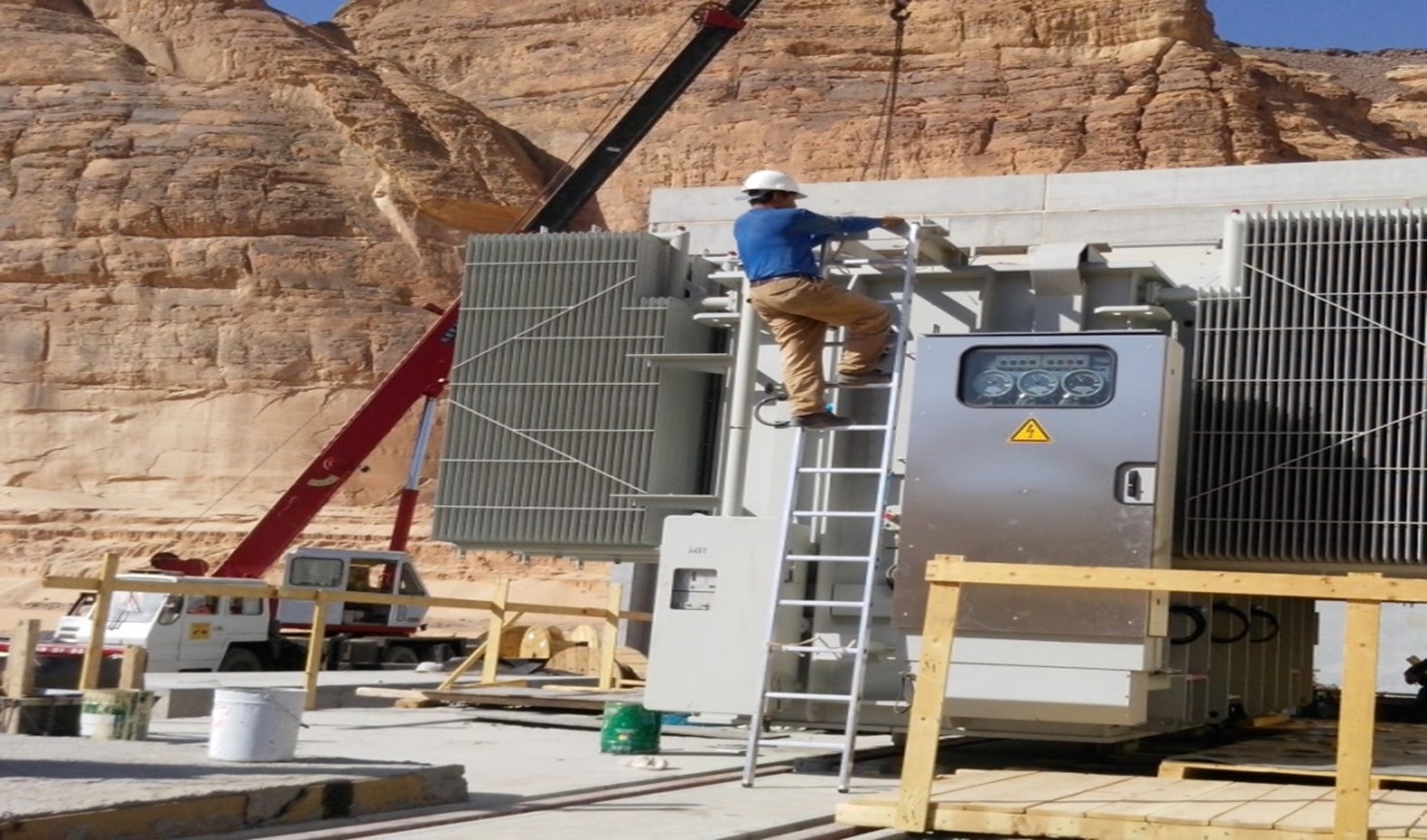

67MVA & 133MVA Transformers

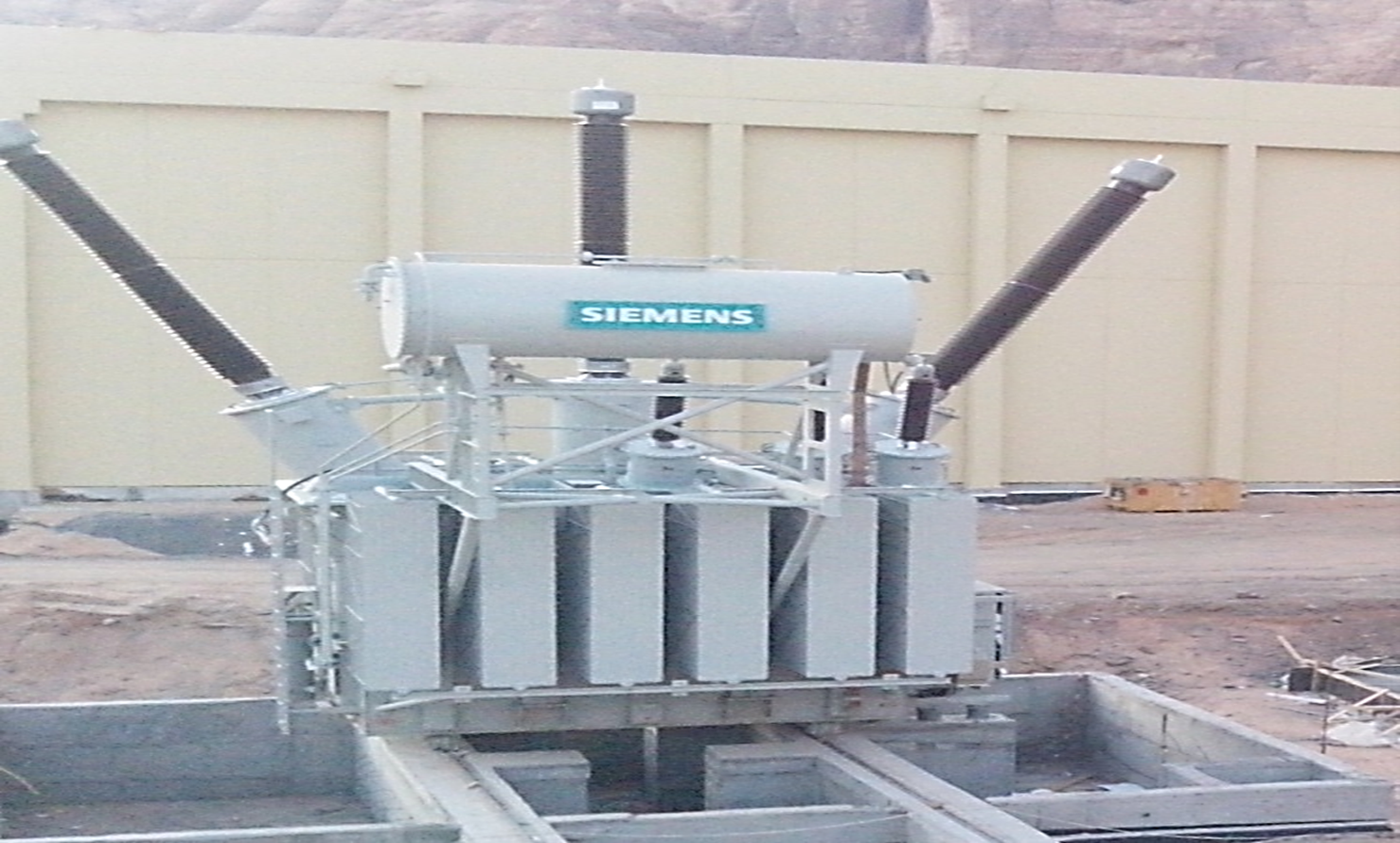

60MVAR Shunt Reactor

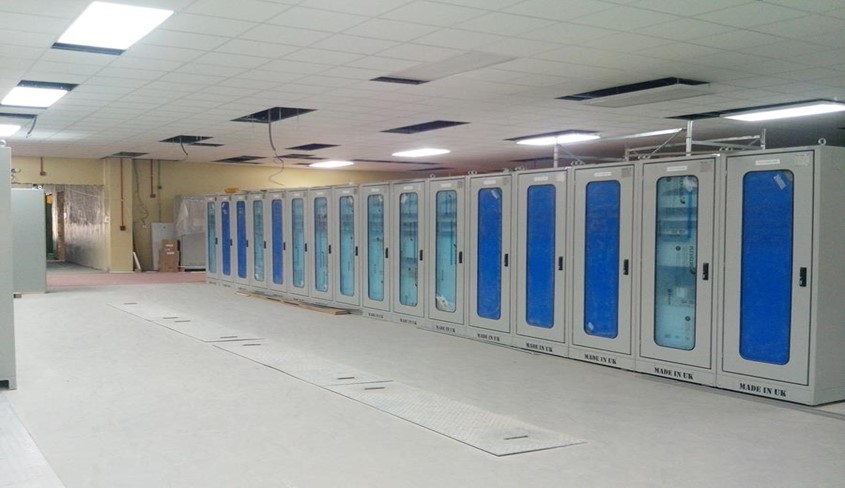

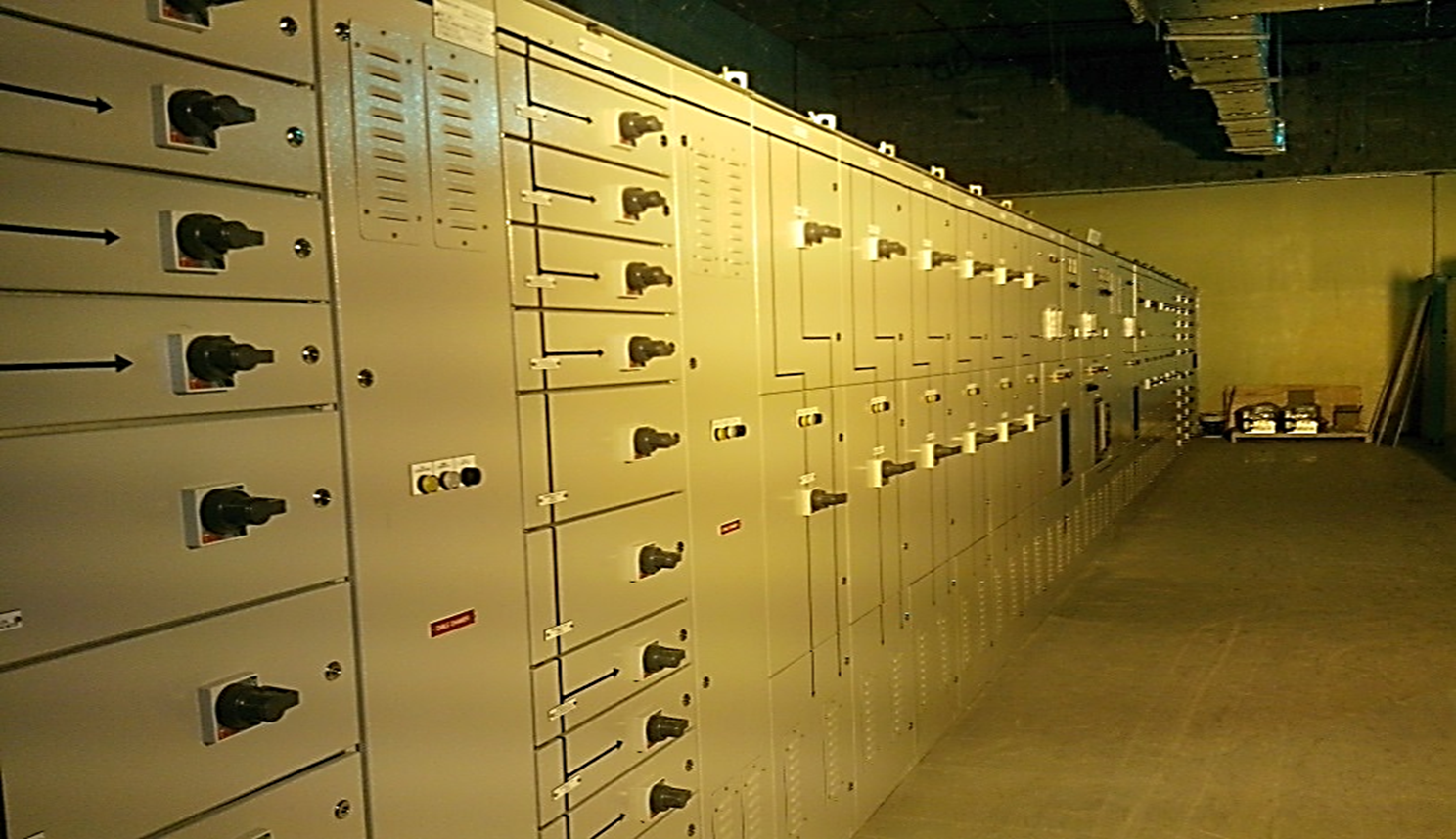

Control & Protection Systems
SCADA & Communication Systems
Civil & Electro-Mechanical Works
Additional Services
Site visits to existing substations, compatibility with existing systems, color matching of new panels with existing ones, and comprehensive system integration.
Project Description
This PTS-11WN347 work covers the construction of a new indoor type 380/132/33/13.8KV GIS substation named as MADAIN 380/132/33/13.8KV BSP including complete protection, metering, control, communication, and SCADA equipment. The project aims to interconnect AL-ULLA network with Western North Area (WNA) 380 kV Network.
IEC 61850 Standards
The new Substation is equipped with Substation Automation System (SAS) and will be remotely controlled from the Power Control Centre (PCC) through SCADA system, communication System and gateway. The monitoring Control and Protection system is IEC 61850 Standard based.
The project includes construction of Double circuit 380kV MADAIN – DHUBA Transmission lines along with required modification at the associated 132kV S/S. The two (2) 132 Lines between ALWAJH & ALULLA shall be Looped IN & OUT at MADAIN BSP along with required modifications at the associated S/S.
