Indoor Gas Insulated Substation - Power Transmission
Jeddah - Western Region
March 2015
Saudi Electricity Company
380/110/13.8 kV
Voltage Level
302/402/502MVA
Main Transformer
Indoor
GIS Type
IEC 61850
Standards
Project Overview
Project:
AL WAHA 380/110/13.8KV BSP
Location:
Jeddah - Western Region
Client:
Saudi Electricity Company
Duration:
March 2015
Technical Specifications
Voltage Levels380/110/13.8 kV
Main Transformer302/402/502MVA
Installation TypeIndoor
StandardsIEC 61850
Scope of Work

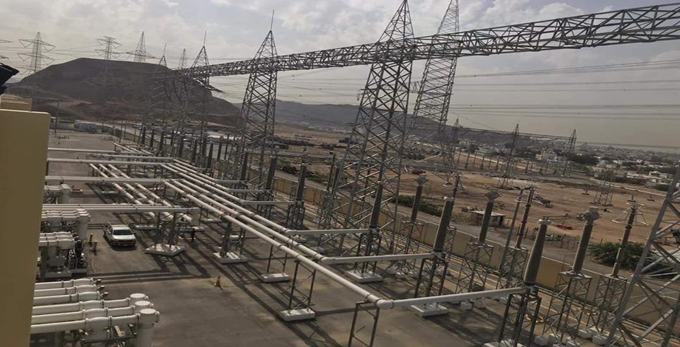

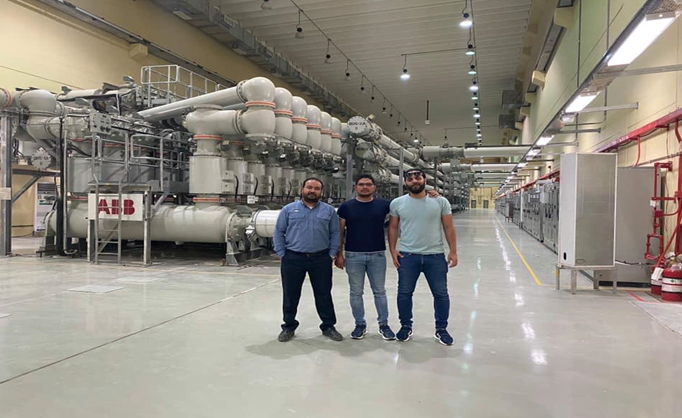

380kV GIS & 110kV GIS Systems
13.8KV Switchgear & Surge Arresters

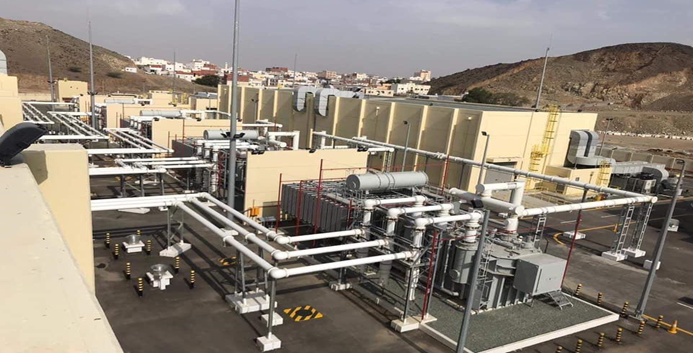

Power Transformers (302/402/502MVA)
Shunt Reactor 380KV 120MVAR
HV/MV Power Cabling & Terminations
SCADA & Substation Automation System
Control & Protection Systems
Civil & Electro-Mechanical Works
Additional Services
Training for SEC Personnel, Protection and Communication Modification/Addition Works at Existing/Ongoing 380kV & 110KV remote ends, Operational Spare Parts & Special Tools
Project Description
This PTS-13WN369 work covers the construction of a new indoor 380/110/13.8kV Gas Insulated Substation, named as AL-WAHA (WHA) 380/110/13.8kV BSP. The project includes state-of-the-art protection, control, communication and SAS/SCADA systems.
IEC 61850 Standards
The BSP is equipped with IEC 61850 standards-based Substation Automation System (SAS) and is remotely controlled from the COMPANY Power Control Centre (PCC) through SCADA and Communication systems.
This Project aims at building WHA BSP and interconnecting it with the WOA Network to provide the required power supply. The integration works include 380kV OHTLs connecting NEW WHA BSP to ADL, SHBIWPP & HHR-2 380kV BSPs, along with underground cables to JAM, KND & HVP. The substation is classified as a Class-I facility.
